Toxicity of Single-Walled Carbon Nanotubes (SWCNTs): Effect of Lengths, Functional Groups and Electronic Structures Revealed by a Quantitative Toxicogenomics Assay
https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7853656/

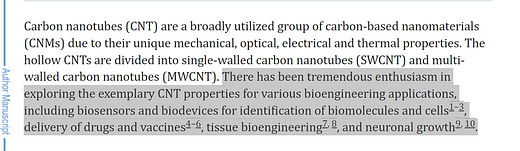

The blooming rate in the production and application of CNTs in various fields has prompted accompanying rise in public concerns on the possible toxicological risks and implications related to these CNMs. Due to the difficulty in determining the accurate CNT concentrations in real environmental matrices11, 12, modeling approaches have estimated the expected CNT concentrations in the aquatic environment and sediments to be in the range of ng/L to perhaps low μg/g based on estimates of production, disposal, and persistence13–15. Although the risk of CNT bioaccumulation in the environment is considered to be low16, 17, laboratory studies have demonstrated that CNTs may be accumulated by both plants and animals18, 19. Petersen et al. have reported that the water flea Daphnia magna can accumulate CNTs in its gut, although the absorption into cellular tissues was unobservable20, 21.
Due to their fiber-like structure, CNT could stimulate asbestos-like pathology, e.g. oxidative stress as well as pulmonary and inflammatory effects22–25. CNT-induced effects observed in humans, mice, rats and many other species have been associated with cytotoxicity26–28, genotoxicity29–31, epigenetic toxicity32, splenic toxicity33, immunotoxcity34, 35, dermal and eye irritation and skin sensitization36, inhibition of lactate dehydrogenase activity37 as well as fecundity and growth38. CNT toxicity has been recognized to be influenced by various factors such as material preparation, surface properties, and characterization methodologies, which have resulted in seemingly inconsistent and even contradictory observations39–41.
The toxicity of single-walled carbon nanotubes (SWCNTs) could be affected by a wide range of morphological, surface, and electronic properties42–46. Most previous studies on SWCNT toxicity have focused on a single or few properties and features each time. Moreover, most studies focused on specific phenotypic endpoints, and molecular level mechanisms were relatively rare. It is of great significance to develop a comprehensive mechanistic understanding of SWCNT nanotoxicity based on their fundamental properties, which will provide a scientific basis for CNM regulatory management and risk mitigation. In summary, systematic studies of the relationship between the toxicological effects and mechanisms of SWCNTs and their physicochemical properties are still scarce in the literature47 and thus are greatly needed.
Most nanotoxicity studies have employed conventional animal-based, e.g. mice and rats, phenotypic toxicity assessment methods due to their anatomical similarities to human health issues25, 48–50. However, the resource-intensiveness, sophisticated analytical methodology, and long testing periods associated with animal-based experiments make it very challenging, if even possible at all, to evaluate the large and ever increasing number and diversity of nanomaterials51. Therefore, a systematic transition from animal-based tests to a tiered screening and evaluation system that incorporates high throughput, mechanistic nanotoxicity testing methodologies and predictive toxicological models is urgently needed51–53.
Recently, we have developed and demonstrated a novel toxicogenomics-based high-throughput 3-dimensional (exposure time, specific protein, expression alteration magnitude) differential protein expression profiling technique, using GFP-fused yeast reporter arrays, for fast, effective and mechanistic toxicity assessment31, 54. In addition, we have developed the Protein Expression Level Index (PELI) for determination of quantitative toxicogenomics endpoints31, 55–57. We have demonstrated successful application of this technology for comparing and evaluating genotoxicity potential and mechanisms among various NMs31. Additionally, a variety of researchers have demonstrated the successful application of genomics58, as well as other omics technologies such as proteomics59–63 and metabonomics64–66 for SWCNT toxicity evaluation.
In this study, we comprehensively assessed the nanotoxicity of SWCNTs with different lengths, surface groups, and electronic structures by employing the newly established quantitative toxicogenomics-based toxicity assay as well as by conventional phenotypic bioassays. In addition, detailed and comprehensive characterization of the SWCNTs of varying properties were performed. The results elucidated the SWCNT structure-dependent toxicology and revealed the relationship between the observed toxicity mechanisms and SWCNT physicochemical properties.
2. Materials and Methods
2.1. Nanomaterials Information and Preparation
Six different types of single-walled carbon nanotubes (SWCNTs), including two SWCNT with different lengths (unmodified SWCNTs; 0.5–2 and 5–30 μm; purity > 90%; Cheap Tubes Inc., VT, USA), two with different functional groups (carboxyl and hydroxyl; purity > 90%; Cheap Tubes Inc., VT, USA), and two with different electronic states (metallic and semiconducting; purity > 98%; NanoIntegris, IL, USA), were assessed in this study (see detailed information in Table 1). The SWCNT characterization is provided in Section 2.2. The synthesis of unmodified and functionalized SWCNTs were through catalytic chemical vapor deposition, followed by purification using dilute nitric acid solution, containing < 3 wt% amorphous carbons and 5–6 wt% MWCNTs (product information from Cheap Tubes). The functionalization of SWCNTs was achieved by air oxidation. The metallic and semiconducting SWCNT were further purified by first heating to 300 °C in an oven for 4 h to remove amorphous carbon (Vecitis et al., ACS Nano, 2010). The SWCNT were then dispersed by bath sonication in concentrated HCl and heated to 60 °C overnight to remove any residual metals.
Table 1.
Characterization of SWCNT. Zeta potential, conductivity, and changes in aggregation size were measured in SD medium during 2 h period, similar to the conditions for bioassays. Mean ± SD. The length range has been supplemented by addition of the mean in parentheses.
SWCNTsLongShort-COOH-OHMetallicSemiconductingDiameter (nm)1.2 ± 0.41.2 ± 0.41.2 ± 0.41.2 ± 0.41.4 ± 0.31.4 ± 0.3Length (μm)5–30 (15.0)0.5–2 (1.0)0.5–2 (1.0)0.5–2 (1.0)0.1–4.0 (1.0)0.1–4.0 (1.0)Oxygen content (%)2.98 ± 0.272.43 ± 0.286.40 ± 0.674.72 ± 0.06N/AN/AZeta (mV)−4.16 ± 0.48−4.77 ± 0.07−6.01 ± 0.29−5.23 ± 0.06−3.15 ± 0.16−3.25 ± 0.12Conductivity (mS/cm)11.20 ± 0.4510.73 ± 0.4210.02 ± 0.279.24 ± 0.2811.17 ± 0.6911.13 ± 0.54Aggregation size, Z-average (nm)0h588.2379.1516.9200.3429.563.882h755.3959.2686.4719.9488.199.22
SWCNTs stock solutions were prepared as 20 times (640 mg/L) of the highest tested concentrations in phosphate buffered saline (PBS) using 1% bovine serum albumin (BSA; purchased from Acros, NJ, USA) as the dispersant which is commonly used in nanotoxicity bioassays63, 67. The stock solutions were sonicated using a bath sonicator at ~130 watt or 15 min to obtain a good dispersion, immediately followed by dilution in synthetic defined (SD) medium for subsequent tests.
The intention of this study is to perform hazard assessment that reveals the impact of various SWCNT properties on its molecular toxicity profiles and mechanisms, rather than to conduct environmental relevant risk analysis. Due to the ability of the toxicogenomics assay for capturing subtle molecular level responses, six sub-cytotoxic concentrations with 4-fold change (i.e. 32–0.031 mg/L for unmodified and functionalized SWCNTs, and 8–0.0078 mg/L for metallic and semiconducting SWCNTs), with the highest concentration as IC5 (inhibition concentration, 5%), were selected based on our previous nanotoxicity study31.
2.2. Characterization of SWCNTs
The characterization of SWCNTs were performed using a Field Emission SEM (FE-SEM) with an in-lens secondary electron (Zeiss ULTRA, CA) for morphological observation, a transmission electron microscope (TEM) (Philips Tecnai F20) for examining the purity and defects in metallic and semiconducting nanotubes, and an X-ray photoelectron spectroscopy (XPS; Thermo Scientific, USA) for surface elemental composition analysis. The quantification of elemental compositions was performed by the Thermo Scientific Avantage software. The XPS instrumental error for elemental percentages was ± 0.1%68. Zeta potential, conductivity and aggregation sizes of SWCNTs in SD medium during exposure time of toxicogenomics assay (2 h) were examined by a dynamic light scattering (DLS) analyzer (Malvern Zetasizer Nano ZS90).
2.3. Toxicogenomics Assay and Quantitative Molecular Endpoint Derivation
The yeast biomarkers ensemble-based library was based on selected of cellular stress response pathways and biomarkers that are considered conserved across species. Yeast cells have commonly been used for toxicity studies because they share fundamental strategies and defense responses to damage and stress with different eukaryotic cells69–71, providing a promising basis for cross-species extrapolation commonly used in toxicity tests. Further, the yeast genome has been well studied, with substantial information available on gene function in public database (e.g. Saccharomyces Genome Database) and, through this, systematic cellular response pathways and molecular events occurring as a response to chemical exposure can be evaluated72–74. Yeast also offers several advantages over higher organisms, including being easy and fast to grow in unlimited quantities, ease of maintenance and storage, low cost, and rapid response.
The detailed description about the procedures of the toxicogenomics assay employing GFP-fused reporter yeast cells (S. cerevisiae) can be found in our previous reports31, 55–57. We used a library of 74 in frame GFP-fused proteins (SI Table S1) of yeast (Invitrogen, no. 95702, ATCC 201388) that were built through homologous recombination directed by oligonucleotide to label each ORF with Aequrea victoria (jellyfish) GFP in its chromosomal location at the 3’ end31, 75, 76. The assay covers a wide range of key biomarkers indicative of all known important toxicological pathways of yeast in main stress categories, i.e. general, chemical, DNA, oxidative and protein stress75, 77–79.
Briefly, yeast strains selected for toxicity assessment were incubated in clear-bottom black-wall 384-well plates with SD medium until the growth of cells reached the early exponential phase (with OD600 around 0.2–0.4). The 10 μL SWCNTs solution (pre-dissolved in PBS), along with blank control (SD medium + 0.25% YPD medium with or without SWCNTs), and internal control (SD medium + 0.25% YPD medium + PGK1 strain with or without SWCNTs), were added to plate wells to obtain the desired final concentrations. PBS with 1% BSA was employed as the vehicle control. The yeast strain fused with housekeeping gene PGK1 was used as an internal control for plates normalization55. After adding the chemicals and controls, the plates were then monitored for cell growth (OD600 absorbance) and GFP signals of protein expression (485 nm excitation and 535 nm emission) by a microplate reader (Synergy H1 Multi-Mode, Biotech, Winooski, VT) for 2 h exposure at an interval of 5 min. All testing was conducted in dark in triplicate. Details of data processing for the yeast toxicogenomics assay can be found in the Electronic Supplementary Information (ESI).
For each SWCNT, PELI-based concentration-response patterns were modeled employing the Four Parameter Logistic (4PL) nonlinear regression model. Toxicity of positive or negative threshold value was set as PELI value of 1.5, which was determined based on the signal to noise ratio for the similar systems based on previous research and the standard deviation range in our toxicogenomics assay31, 56. The derivation of PELI-based molecular endpoint PELI1.5 (mg/L) was described in our previous studies55, 57. Additionally, genotoxicity and oxidative stress induced by each SWCNT at PELI1.5 was expressed as toxic equivalents geno-TEQ1.5 and oxi-TEQ1.5, respectively, for which mitomycin C (MMC) and H2O2 was employed as the reference compound, respectively80, 81,49. Since molecular weight is not available for SWCNTs, the unit mg/L was used in the equation.
2.4. Intracellular ROS Production Measurement
The intracellular ROS production induced by all the 6 SWCNTs at the two highest concentrations, i.e. 8 and 32 mg/L for unmodified and functionalized SWCNTs and 2 and 8 mg/L for metallic and semiconducting SWCNTs, was measured according to the protocol of Abcam (http://www.abcam.com) and literature82, 83, using probe 2’,7’-Dichlorofluorescin diacetate (DCFDA, Sigma-Aldrich, D6883-50MG). Briefly, GFP-negative yeast strain was incubated in YPD medium overnight, and then seeded in SD medium for 4–6 h at 30 °C. DCFDA probe was then added to reach a final concentration of 25 μM, and incubated for 45 min at 30 °C in dark. The cells were collected, washed once by PBS and then suspended in SD medium. The suspended cells were seeded into clear bottom black side 96-well plate to reach OD600 about 0.3 to 0.4, and chemicals were added to reach the desired final concentration for 2 h exposure. The fluorescence signals were read for 485-nm excitation and 535-nm emission, and the fold change in ROS production was calculated using the following equation: (Ftest–Ftest blank)/(Fcontrol–Fblank), where Ftest, Ftest blank, Fcontrol, and Fblank, represent the fluorescence readings from SWCNT-treated wells, chemical control with probe (no cells), stained control wells, and blank media control with probe (no cells), respectively. The plate reader has been calibrated and verified to provide a linear response for the tested conditions in the assay84. The equivalent to H2O2 (positive control) was also obtained. The test was conducted in triplicate.
2.5. DNA Damage Alkaline Comet Assay in Human A549 Cells
Alkaline comet assay in human lung epithelial cells A549 (American Type Culture Collection ATCC, Manassas, VA) in response to each SWCNT exposure at 1 mg/mL based on their IC5 concentrations in human A549 (SI Figure S1) or 1% FBS-F12 medium only (as untreated control) for 24 h was performed following the ITRC protocol85 with the CometAssay 96 Kit (Trevigen Inc., Gaithersburg, MD). Cytotoxicity of plain and functionalized SWCNTs in human A549 cells for 24 h exposure was performed by first seeding 2×104/well of cells in a 96-well plate in the complete growth medium-F12K medium with 10% FBS. Cells are incubated for 24 hours at 37 °C in the presence of 5% CO2 to reach continuous mono-layer growing. Then the cells were washed by PBS and tested SWCNT samples previously prepared in 1% FBS were added (200 μL/well) in designated wells in triplicates; meanwhile, 200 μL of medium with 1% FBS were added into designated wells in triplicates as untreated controls for each tested sample. The 96-well plate was incubated for 24 hours at 37 °C in the presence of 5% CO2. The cells were then stained, washed and extracted, and the cell amount was quantified via microplate reader as OD630. Survival ratio was calculated as OD630, test/OD630, untreated. The acute toxicity endpoints were reported as IC5 based on dose-response curves.
All the testing procedures in comet assay were conducted in dark in triplicate. For each treatment, 25 cells were randomly selected and examined using the CASP software (University of Wroclaw, Institute of Theoretical Physics) and the damages were calculated as % Tail DNA. For a given tested SWCNT, it was recognized as genotoxicity positive if the % Tail DNA of treated sample significantly (p < 0.05) increased compared to the untreated control.
2.6. Data Analysis
Hierarchical clustering (HCL) was carried out to cluster the 6 SWCNTs across the 6 concentrations according to altered protein expression levels of 74 biomarkers in response to each sample during the 2 h exposure employing the MultiExperiment Viewer (MeV) v4.8 software suite86. The relationship among the 36 samples was revealed by the order of complete average linkage clustering according to correlation distance.
To simplify the complex data sets of categories, principal component analysis (PCA) was conducted through examining the components with the highest variance according to their altered protein expression profiles using MultiExperiment Viewer (MeV) v4.8 software suite86 with centering mode as mean and number of neighbors for KNN imputation as 10.
Furthermore, we performed gene set enrichment analysis (GSEA) to assess the activities of a particular pathway or assembly of proteins by ranking a list of proteins per their PELI values based on the study by Subramanian et al87. The significance of each pathway was generated through comparisons between their ranking scores and the associated empirical distributions. The null distributions were obtained via the random permutation of the specific pathway and all others 1000 times.
Additionally, gene ontology (GO) enrichment analysis for determining the significantly represented (overrepresented) biological categories was performed with the Network Ontology Analysis (NOA) method88 using the selected stress library as the reference set56. The activated ORFs that had a mean PELIORF > 1.5 were employed as test sets56, 76, 89. A p-value < 0.05 was considered to be statistically significant. GO analysis was performed for the concentrations at which the largest number of proteins (ORFs) were activated, i.e. 32 mg/L for unmodified and functionalized SWCNTs, and 8 mg/L for metallic and semiconducting SWCNTs.
3. Results
3.1. Characterization of SWCNTs
The physical and chemical characteristics of the six SWCNT samples are provided in Table 1. Representative scan electron microscope (SEM) and transmission electron microscope (TEM) images of the samples are shown in Figure 1. Visual inspection indicated that the tubes were highly bundled, with the diameter of bundles as high as 50 nm (versus ~1.2 nm for single tube). We selected three pairs of SWCNTs with different lengths (unmodified short and long), functional groups (short hydroxylated and carboxylated) and electronic structures (short unmodified semiconducting and metallic). The unmodified and functionalized SWCNTs are mixture of approximately 2/3 semiconducting and 1/3 metallic SWCNTs.
SWCNTs morphology measured using scanning electron microscope (SEM; A - D) and transmission electron microscope (TEM; E - F): (A) long SWCNT, (B) short SWCNT, (C) carboxylated SWCNT, (D) hydroxylated SWCNT, (E) metallic SWCNT, (F) semiconducting SWCNT. The scale is shown at the left bottom corner.
All of the carbon nanotubes utilized in this study were pretreated with calcination to remove any amorphouse carbon and hot acid solution wash (concentrated HCl or dilute HNO3) to dissolve any residual surficial metals (Supplementary Information). Therefore, the potential impact of residual metals on the bioassay are likely minimal.
The characterization of aqueous-based SWCNT was performed in SD bioassay medium after 2 h duration, similar to the conditions for the toxicogenomics bioassay, thus the results will be strongly affected by the medium as compared to aqueous SWCNT. The metallic and semiconducting SWCNTs with the lowest zeta potential will be most inclined to aggregate while the functionalized SWCNTs with the highest zeta potential will be the most resistant to aggregation. However, overall the zeta-potentials are quite similar which is likely due to SWCNT interactions with the SD medium. SWCNT Z-average size using DLS is subject to even more error since the light scattering device assumes dense spherical particles and the aggregation of 1D nanotubes will result in low density non-spherical particles. On top of this, the DLS laser scattering wavelength is 632 nm falls within the metallic SWCNT UV-vis absorption peak.
The measured conductivity for all of the SWCNT samples was quite similar since the measurements were made on vacuum filtered films and thus are a bulk conductivity and not a single particle measurement. Although the conductivity of metallic and semiconducting SWCNTs is significantly different on a single nanotube measurement90, the bulk measurement could miss the difference since the conductivity will be resisted by the large number of hops an electron must make between tubes over the whole bulk.
3.2. Distinctive Toxicity Profiles Among Various SWCNTs Revealed by the Quantitative Toxicogenomics Analysis
The high-resolution toxicogenomics assay revealed the distinctive molecular stress response related toxicity profiles among the six SWCNTs with varying characteristics (Figure 2A). The molecular toxicity of SWCNTs is concentration- and structure-dependent, indicating that the varying modification and treatment of the SWCNTs indeed impacted the toxicity fingerprints as results of the changes in surface functionalization, lengths and electronic properties. The magnitude in the induction of protein expression increased with the increase in concentrations for all SWCNTs. In general, the six SWCNTs were separated by clusters, and SWCNTs with the same physicochemical trait (e.g. length) but varying concentrations clustered together, suggesting a more physicochemical-property-dependent toxicity fingerprints. The exception is that at the highest concentrations the different SWCNTs all clustered together. This may be explained by the strong cellular response across all stress pathways and categories exerted by SWCNTs at the highest sub-cytotoxic concentration, which masked the individual CNT-specific stress responses.
(A) Hierarchical Cluster (HCL) analysis diagram on the basis of differential protein expressions (lnI, average of triplicates) of the 74 stress biomarkers in yeast in response to the 6 studied single-walled carbon nanotubes (SWCNTs). The mean natural log of positive induction factors (lnI) indicate the magnitude of regulated protein expressions (scaled by the green-black-red color spectrum at the top. Green color spectrum indicates downregulation, and red color spectrum indicates upregulation. The lnI values beyond ± 2 were indicated as ± 2). X-axis bottom: sample names and concentrations of the SWCNTs, and cluster root of the samples. C1-C6 indicate concentrations 1–6, which are 0.031, 0.125, 0.5, 2, 8 and 32 mg/L, respectively, for unmodified and functionalized SWCNTs, and 0.0078, 0.031, 0.125, 0.5, 2 and 8 mg/L for metallic and semiconducting SWCNTs. Y-axis left: list of proteins categorized within five stress categories (captions shown at top). Y-axis right: cluster root of stress proteins and sub-clusters a, b, c. All tests were performed in triplicate (n = 3). (B) Principal component analysis (PCA) with differential protein expressions (lnI, average of triplicates) in GFP-fused yeast library exposed to the 6 SWCNTs across 6 concentrations. Samples are color-coded and each legend shape indicates one treatment with larger legend size representing the higher concentration.
The clustered altered protein expression patterns revealed the protein markers and indicated biological processes that shared similar regulation behavior in response to the 6 SWCNTs. There are sub-clusters (i.e. a, b, c) with biomarkers belong to the same stress response categories such as DNA damage and oxidative stress due to their shared co-regulation (Figure 2A). For example, cluster “a” included mostly oxidative stress, DNA damage, and protein damage related biomarkers such as CCS1, YBP1, OGG1, CHK1, UTH1, and OXA1. This cluster of biomarkers exhibited the highest altered protein expression level in response to 4 of the 6 SWCNTs (i.e. unmodified and functionalized SWCNTs) at their highest concentrations, indicating strong DNA and protein damage, and oxidative effect of these SWCNTs at higher concentrations near the yet sub-cytotoxicity thresholds.
Principal component analysis was performed based on differential protein expression profiles of biomarkers indicative of various cellular stress responses of the 6 SWCNTs with varying structure characteristics (Figure 2B). The results showed that the first two principle components (PCs) explained around 60% of the total variance among all the 6 SWCNTs across 6 concentrations. It is revealed that the studied SWCNTs with different physicochemical properties, and at varying concentrations, were separated with different projection directions, suggesting that they all have distinct toxicity profiles and underlying molecular mechanisms. The lower concentration (≤ 2 mg/L) samples were projected along the left X-axis PC1 direction, while the high concentration (≥ 8 mg/L) samples were scattered towards the right along X-axis, suggesting that the difference in toxicity profiles among varying concentrations was likely captured by the first PC. Along the Y-axis PC2 direction, the metallic SWCNTs were noticeably projected along the upper PC2 direction, indicating a distinct cellular effect likely related to the metallic conductivity. Interestingly, the short and long SWCNTs were projected oppositely along Y-axis, implying their differential molecular toxicity characteristics associated with the length effects. Semiconducting SWCNTs at varying concentrations were all clustered together, close to the lowest concentrations of other SWCNTs, with the lowest magnitude of overall toxicity response.
3.3. Insights into Distinct Molecular Toxicity Mechanisms Revealed by Comparison Among Various SWCNTs
The quantitative toxicity indicators, as PELI values, of the 6 SWCNTs (Figure 3) showed that as the concentration increased, the toxicity levels were generally elevated. Genotoxicity and oxidative stress were the two main stress categories induced upon response to unmodified and functionalized SWCNTs at higher concentrations (8 and 32 mg/L), for which almost all the known DNA damage pathways were induced. The dominant molecular response seemed to be DNA stress for all samples disregarding the functionalization and length, which was also confirmed by GSEA analysis (Figure 3 and SI Table S2; detailed results and discussion described below). This is consistent with the previous finding indicating that single-stranded DNA possessed the ability to wrap CNT91. Additionally, functionalization of SWCNTs led to elevated overall toxicity, especially notably greater genotoxicity than unmodified SWCNTs at the higher concentration range. Semiconducting SWCNT exhibited the lowest and nearly marginal observable toxicity (PELI < 1.5) among all SWCNTs.
Quantitative molecular toxicity profiles of the 6 studied single-walled carbon nanotubes (SWCNTs) in terms of the PELI values for the 5 stress categories and total PELI: (A) long SWCNT, (B) short SWCNT, (C) carboxylated SWCNT, (D) hydroxylated SWCNT, (E) metallic SWCNT, (F) semiconducting SWCNT. X-axis: concentrations of examined SWCNTs (mg/L). Y-axis: PELI as molecular toxicity endpoint. Mean ± SD; replication number n = 3. The “*” indicates the enriched stress categories revealed by GSEA.
The PELI-based molecular endpoint PELI1.5 (mg/L) was determined from the 4PL nonlinear concentration-response curves (SI Figure S3) at the studied concentration range, as shown in Table 2. PELI1.5 marks the beginning of observable toxicological effects (PELI = 1.5), and can quantitatively reflect toxicity levels at the lower concentration range. Consistent with toxicity level profiles and GSEA analysis, the PELI1.5 of DNA damage was the lowest among the five stress categories for each SWCNT, meaning that DNA damage category exhibited the highest toxicity level among all categories. Short SWCNT showed notably lower PELI1.5 in general, DNA, oxidative, protein, and overall stress than long SWCNT, indicating a higher toxicity for short SWCNT. Although the PELI1.5 of oxidative stress was comparable for the two functionalized SWCNTs, carboxylated SWCNT had lower PELI1.5 in chemical stress, DNA damage, protein damage and total stress than the hydroxylated tube variant, indicating that carboxylation induced a higher SWCNT toxicity compared to hydroxylation. Metallic SWCNT exhibited a greater DNA damage capability than semiconducting variant based on PELI1.5, which is consistent with toxicity level and protein expression profiles.
Table 2.
Summary of PELI-based molecular endpoint PELI1.5 (mg/L) and toxic equivalents geno-TEQ1.5 and oxi-TEQ1.5. PELI1.5 was determined from the Four Parameter Logistic (4PL) nonlinear concentration-response curves (SI Figure S3) at the studied concentration range for the 5 stress and total categories. Toxic equivalents geno-TEQ1.5 and oxi-TEQ1.5 are for genotoxicity and oxidative stress, respectively, induced by each SWCNT at PELI1.5, using mitomycin C (MMC) and H2O2 as the reference compound, respectively.
SWCNTsPELI1.5 (mg/L)TEQ1.5ChemicalGeneralDNAOxidativeProteinTotalGeno-Oxi-Long0.308.360.0481.5210.231.5814.982.24Short5.22< 0.031< 0.0310.247.390.14> 23.1914.18-COOH4.993.850.2097.292.8012.983.440.467-OH6.582.911.527.474.883.890.470.456Metallic1.461.510.48< 0.0078N/A1.931.50> 436.3SemiconductingN/AN/AN/A7.577.86N/AN/A0.45
PELI1.5 is not available when the concentration-response curve falls below the line PELI = 1.5 at the highest studied concentration.
Furthermore, toxic equivalents geno-TEQ1.5 and oxi-TEQ1.5 induced by each SWCNT at PELI1.5 were calculated using MMC and H2O2 as the reference compound, respectively, as listed in Table 2. It is worth noting that the PELI1.5 was determined at the tested concentration range (0.031–32 mg/L for unmodified and functionalized SWCNTs), and from the concentration-response curves, short SWCNT has a PELI1.5geno less than 0.031 mg/L, and thus has the highest genotoxic equivalent. In contrast, based on PELI1.5 of oxidative stress, metallic SWCNT possessed the highest oxidative stress equivalent in reference to H2O2.
The stress categories were analyzed by GSEA to further compare toxicity responses and potential MOAs among all the 6 SWCNTs (SI Table S2). Results indicated that DNA damage and oxidative stress were the main MOA for all samples disregarding the functionalization and length. In particular, DNA damage was the dominant stress category. Oxidative stress was significantly enriched for long and semiconducting SWCNTs at the highest concentrations, and for hydroxylated and metallic SWCNTs at the lower concentrations.
GO enrichment analysis was performed for the activated ORFs (PELIORF > 1.5) in yeast cells in response to the 6 SWCNTs exposure at their highest concentrations, i.e. 32 mg/L for unmodified and functionalized SWCNTs, and 8 mg/L for metallic and semiconducting SWCNTs, which had the largest number of ORFs activated. The overrepresented (p-value < 0.05) GO biological categories, i.e. biological processes, cellular components and molecular functions, are listed in Table S3. Results showed that the biological processes induced by the 32 mg/L long SWCNT were mainly associated with cellular response to stimulus and stress, and response to DNA damage stimulus, indicating DNA stress was one of the main stress categories, which was consistent with GSEA results. Additionally, the significantly represented GO cellular components suggesting the macromolecules such as protein and DNA might be the main targets for long-SWCNT-induced toxicity. For the 32 mg/L short SWCNT, macromolecule modification, post-translational protein modification, and phosphorylation were mainly induced. Moreover, transferase activity, specifically transferring phosphorus-containing groups such as diphosphate or nucleotides was induced by short SWCNT.
Regarding the two functionalized SWCNTs, negative regulation of biological process and cellular process were mainly induced by the carboxylated SWCNT, implying that yeast cells might undertake down-regulation of some biological and cellular processes to stop or reduce their rate or extent in response to carboxylated SWCNT exposure. Additionally, macromolecular complex and nuclear part might be the main target sites by carboxylated SWCNT, indicated by the overrepresented GO cellular components. While for the 32 mg/L hydroxylated SWCNT, response to stimulus, negative regulation of biological and cellular process, and autophagy were induced. DNA-damage-related biological processes, such as DNA metabolic process, response to DNA damage stimulus, and DNA repair were significantly induced by the 8 mg/L metallic SWCNT, and nucleus might be the main target site indicated by the overrepresented GO cellular components. Regarding the semiconducting SWCNT, biological processes such as response to stimulus and oxidative stress, and cell redox homeostasis, and molecular functions oxidoreductase activity were overrepresented, indicating oxidative stress is the main toxicity category, which is consistent with GSEA analysis (Figure 3 and SI Table S2).
3.4. Conventional Phenotypic Toxicity Endpoints of SWCNTs and Comparison with Molecular Toxicity Endpoints comparisons
To validate and compare molecular endpoints with phenotypic endpoints, we also performed oxidative stress related ROS production measurement in yeast cells and genotoxicity alkaline comet assay in human A549 cells for the 6 SWCNTs. The correlation between molecular and phenotypic endpoints can evaluate and quantify the capability of the quantitative molecular disturbance quantifier based on altered expression of key proteins involved in oxidative stress and DNA damage pathways to capture the ROS production and DNA damage potential, and therefore to predict phenotypical outcomes in terms of ROS production and DNA damage phenotypic endpoints, which are shown in Figure 4.
(A) Intracellular ROS production (equivalent to mg/L H2O2) in yeast cells induced by the 6 tested single-walled carbon nanotubes (SWCNTs), and (B) % Tail DNA compared to untreated control determined by alkaline comet assay for the 6 SWCNTs. The % Tail DNA compared to untreated control indicates DNA damage caused in human A549 cells by the 6 SWCNTs. (A) and (B): X-axis bottom: name of the 6 SWCNTs; Y-axis: (A) ROS production (equivalent to mg/L H2O2), and (B) % Tail DNA compared to untreated control. The “*” indicates significantly higher than untreated control (p < 0.05). Mean ± SD. For ROS production, n = 3; for comet assay, n = 4.
The ROS production comparison among all SWCNTs are shown in Figure 4A. Results showed that the ROS production induced in yeast cells increased as the concentrations increased for each SWCNT. Additionally, the long and hydroxylated SWCNTs induced the highest ROS production at 8 and 32 mg/L. Furthermore, we examined the consistency and correlation between ROS production and toxicogenomics assay endpoints PELI values induced by each SWCNT at the same concentration. The PELI values of oxidative stress and total stress had a good correlation with ROS production (r = 0.8642 and 0.9501, respectively) (Figure 5).
Correlation of intracellular ROS generation (equivalent to mg/L H2O2) with PELIoxi (A) and PELItotal (B) in yeast, and correlation of % Tail DNA compared to untreated control with PELIgeno for the 6 tested single-walled carbon nanotubes (SWCNTs) (C). The % Tail DNA compared to untreated control examined by alkaline comet assay indicates DNA damage caused in human A549 cells by the 6 SWCNTs. The 95% confidence intervals are indicated by the dash lines. (A) and (B): X-axis bottom: ROS production in yeast equivalent to mg/L H2O2; Y-axis: PELIoxi (A) or PELItotal (B) in yeast assay. (C) X-axis bottom: % Tail DNA compared to untreated control; Y-axis: PELIgeno in yeast assay. r indicates Pearson correlation coefficient; p value shows whether the correlation is significantly linear. Mean ± SD. For ROS production, n = 3; for comet assay, n = 4. An error bar was not shown when it was smaller than marker size.
The DNA damage results via comet assay revealed that all SWCNTs except the semiconducting one exhibited the positive genotoxicity in human A549 cells (Figure 4B), which are consistent with the toxicogenomics assay results. Furthermore, the phenotypic genotoxicity endpoints generated from comet assay in human cells were in a good agreement with the molecular endpoints PELIgeno (r = 0.9198) (Figure 5). This suggested that the biomarkers ensemble selected in the toxicogenomics assay for DNA damage stress categories were cable to capture and predict the potential DNA-damage, as shown in our previous studies20,47–49. Comet assay detects DNA strand breaks resulted from various DNA damages, including single strand breaks, double strand breaks, alkali-labile sites, incomplete excision repair sites, and crosslinks (DNA-DNA or DNA-protein)92, therefore cautions should be taken in correlating Comet assay results with individual biomarker or damage pathway93. This highlights the advantages of real-time multi-biomarker and multi-pathway ensemble-based approaches. In addition, possible interferences of NMs on Comet assay, as suspected by Lin et al93, require considerations as well.
4. Discussion
The ROS generated from the interaction between engineered CNMs (including SWCNTs) with biological molecules, which thus lead to oxidative stress, have been proposed as possible mechanisms involved in their nanotoxicity94, 95. ROS are well known to have both harmful and beneficial effects on biological systems. The deleterious influence on cells has been demonstrated to generally result in DNA damage, oxidation of amino acids in proteins and fatty acids in lipids (lipid peroxidation), as well as oxidative inactivation of specific enzymes via co-factor oxidation96. Our results from molecular toxicogenomics assay and conventional phenotypic assay indicated that all the 6 studied SWCNTs can induce oxidative stress and ROS production in yeast cells in a concentration-dependent pattern.
Genotoxicity is the main toxicity category for unmodified and functionalized SWCNTs in our study. Concerns have been raised about the genotoxic effects of nanomaterials in recent years97, which should be carefully investigated, considering that the instability of genetic materials is directly related to the cancer development98. Genotoxicity caused by nanomaterials could be ascribed to several reasons, such as direct interaction of the particles with DNA or other cellular components, indirect damage induced by ROS, as well as release of toxic ions99. The quantitative toxicogenomics-based genotoxicity indicator PELI values were higher than those for the oxidative stress effects, suggesting that, the mechanical injury, rather than, or in addition to oxidative effects, was likely responsible for the DNA damage induced by SWCNTs100. Specifically, SWCNTs possibly penetrated cell nucleus via nucleopores, followed by degrading the double helix structure of DNA101.
In spite of the similarity in the oxidative stress and genotoxicity commonly exerted by all the 6 SWCNTs, our results further revealed more detailed molecular toxicity natures and fingerprints that were differentially affected by their physicochemical properties, i.e. lengths, surface functional groups and electronic structure as discussed below.
4.1. Effect of Lengths on Toxicity of SWCNTs
Comparison of quantitative toxicogenomics assay endpoints PELI values suggested that the short SWCNT (0.5–2 μm) had a higher toxicity level than long SWCNT (5–30 μm) (Table 2). Additionally, both the stress response profiling and PCA results revealed distinguishable molecular toxicity fingerprints for the two SWCNTs with different lengths (Figure 2).
The documented data citing in vitro toxicity of SWCNTs with different lengths are inconsistent. The interactions between SWCNTs and cells include internalization and penetration102–104. Phagocytosis was regarded as the most critical pathway for internalization of SWCNTs having 1 μm or longer length and thus for SWCNT related toxicity102, 105. Therefore, cells that cannot uptake nanoparticles via phagocytosis should have higher vulnerability to CNTs with consequently lower toxicity106. In contrast, Cui et al. investigated the uptake and exocytosis of SWCNTs in three lengths in macrophages, and found that the cellular accumulation of SWCNTs was independent on length107. In this study, the size of yeast cells (3–4 μm) is comparative to that of CNTs, which makes the phagocytosis of nanotubes by yeast cells not likely, therefore the expected difference in toxicity effects resulted from preference in phagocytosis due to SWCNT length may not be as evidence.
The other mode of action of SWCNTs to cells is penetration103, which is likely the main interaction mode between yeast cells and the studied SWCNTs considering their comparative sizes. Rotoli et al. compared the effects of two SWCNTs with length of 0.5–100 μm and 0.5–2 μm on human lung cancer cell line Calu-3, and the results indicated that only shorter SWCNTs induce a significant decrease in cell viability108. Our results showed that the varying CNT lengths not only resulted in significant difference in the toxicity endpoints magnitude between the SWCNTs based on PELI values, but also induced the differences in their observably distinguishable molecular impacts on cells elucidated by the high-resolution molecular response profiles, which may entail certain different toxicological outcomes. Specifically, the SWCNT with a shorter length showed a higher toxicity, which might be due to that the short tubes are more mobile and less prone to aggregation, making the penetration easier compared to long tubes. In addition, a number of key biomarkers showed up-regulated expression in response to short SWCNT only and not to long SWCNT, such as cell wall integrity related plasma membrane protein PUN1, apoptosis related protein NMA111, and cytosolic unfolded protein response (cytUPR) related protein UBC8 (SI Figure S2).
4.2. Effect of Functional Groups on Toxicity of SWCNTs
The results in our study showed that DNA damage and genotoxicity was the dominant toxicity category for both carboxylated and hydroxylated SWCNTs (Figure 3). Based on quantitative toxicogenomics assay endpoints, carboxylated SWCNT induced a greater genotoxicity, chemical stress, protein damage and overall toxicity compared to hydroxylated one, while the oxidative stress level was comparable for both. This might be partially explained by that carboxylated SWCNT has a higher permanent negative charge and is significantly more water stable. Functionalization has been increasingly employed to modify the hydrophobicity or hydrophilicity of nanoparticles109, facilitating covalent biomolecule binding110 and providing active sites to immobilize target enzymes111. SWCNT functionalization modifies their surface chemistry and dispersion, and thus may influence their toxicological effects. Yang et al. found a higher toxicity of functionalized SWCNTs and attributed this to their higher solubility and dispersion in water112, and thus they had a higher chance to bind with the protein, peptide or oligonucleotide96.
A study conducted by Mrakovcic et al. showed carboxylated short SWCNTs (1–2 μm) exhibited higher genotoxicity in V79 Chinese hamster fibroblasts and human A549 cells than unmodified SWCNTs30. Others also showed evidence that COOH modified SWCNTs exhibited higher toxicity than unmodified SWCNTs in human endothelial cells (HUVEC)113, as well as in fish embryos114. Our finding confirmed the elevated toxicity related to functionalization on SWCNT at the higher concentration range, as discussed above. Furthermore, the finer-resolution differences between the two different functional groups, namely COOH versus OH, in their cellular molecular toxicity responses were revealed for the first time. For example, signal transduction related biomarker CDC28 was up-regulated in response to carboxylated SWCNT only; while only hydroxylated SWCNT induced the up-regulation of protein RAD30 that is related to translesion synthesis (TLS) DNA repair pathway.
4.3. Effect of Electronic Structure on SWCNT Toxicity
Comparison of the toxicity between metallic and semiconducting SWCNTs showed dramatic differences in their toxicity levels and stress response profiles, with metallic SWCNT exerting relatively higher toxicity, while semiconducting SWCNT showing the lowest and nearly no observable toxicity (PELI < 1.5) (Figures 2 and and3).3). Various studies demonstrated semiconducting SWCNTs were significantly less reactive than metallic SWCNTs with similar dimensions115–119. The higher electron density and conductivity near the SWCNT Fermi level could be attributed to the higher reaction rate for metallic SWCNTs. Vecitis et al. showed that the metallic SWCNT had a higher cytotoxicity than semiconducting SWCNTs in E. coli, and proposed that the metallic SWCNT facilitated cellular oxidation by conductively bridging over the lipid bilayer and then electronically aiding oxidation of some key polypeptides such as glutathione that plays a crucial role in maintaining cell redox environment and its significant oxidation leads to cell death. Another mechanism proposed is that the metallic SWCNTs could induce direct oxidization of bacteria through a process like Fermi level equilibration120, 121. Our results confirmed that metallic SWCNT indeed led to a higher molecular toxicity than semiconducting SWCNT. This might be attributed to that the micrometer length and conductive characteristics of metallic SWCNTs enabled the potential “short-circuit” of cells by acting as conductive bridges over the insulating lipid bilayers, accompanying by release of cellular energy into the external environment.
Moreover, the high-resolution toxicogenomics assay depicted distinctive molecular stress response profiles for metallic and semiconducting SWCNTs, revealing that a large number of key biomarkers were significantly upregulated in response to metallic SWCNT but not to semiconducting (Figure 2 and SI Figure S2). For example, chemical stress related protein SNQ2 that is a ATP-binding cassette (ABC) transporter, general stress related protein FIS1 involved in mitochondrial fission and peroxisome abundance, oxidative stress regulators SKN7, and DNA repair proteins RAD30 for TLS, RAD4 for nucleotide excision repair (NER), and PHR1 for direct reversal repair (DRR) exhibited significant upregulation only with metallic SWCNT. It is recognized that there is still considerable pathway level detail that is yet to be elucidated and the differences between yeast and higher organisms are bound to exist. Therefore, the method described here is more suitable for Tox21 vision tiered testing as screening, prioritization and initial assessment of toxicity, especially for environmental applications that have challenges in high resource cost-demand due to large number of samples/conditions. This will help guide and prioritizing the resources for further evaluation in specific and relevant biological systems.
5. Conclusions
This study quantitatively compared the cellular toxicity profiles and mechanisms among 6 SWCNTs with varying lengths, functional groups and electronic structures with the object to elucidate the toxicological effects of SWCNTs and their dependence on physicochemical properties. The results revealed that DNA damage and oxidative stress seemed to be the dominant molecular effects for all SWCNTs, although the molecular toxicity profiles were distinct indicating distinguishable and SWCNT property-dependent toxicity effects and mechanisms among the SWCNTs with varying lengths, functionalization and electronic structures. Comparison of quantitative toxicogenomics assay endpoints PELI values suggested that the short SWCNT (0.5–2 μm) had a higher toxicity level than long SWCNT (5–30 μm) and they have distinguishable molecular toxicity fingerprints with short SWCNT having the highest oxidative stress effects in contrast to more pronounced DNA damage effects by long SWCNT. Due to the comparable size of yeast cells (3–4 μm) to that of CNTs, the phagocytosis of nanotubes by yeast cells is not likely and penetration is likely the main interaction mode between yeast cells and the studied SWCNTs. Functionalization also impacts the toxicity nature. Carboxylated SWCNT induced a greater genotoxicity, chemical stress, protein damage and overall toxicity compared to hydroxylated one, while the oxidative stress level was comparable for both. This might be partially explained that carboxylated SWCNT has a higher permanent negative charge with higher water solubility. Comparison of the toxicity between metallic and semiconducting SWCNTs showed dramatic differences in their toxicity levels and stress response profiles, with metallic SWCNT exerting relatively higher toxicity than semiconducting SWCNT that has nearly no observable toxicity. This confirms the previous observation that the metallic SWCNT had a higher cytotoxicity than semiconducting SWCNTs in E. coli. The results seem to support the hypothesis that that metallic SWCNTs enabled the potential “short-circuit” of cells by acting as conductive bridges over the insulating lipid bilayers and then electronically aiding oxidation.
The data generated in this study can be used to develop prototype nanotoxicity Quantitative Structure Activity Relationship (QSAR) models with hierarchical structures that integrates current QSAR framework with molecular bioassay information through correlative links among nanomaterial descriptors, nanotoxicity mechanism-specific molecular endpoints and phenotypic nanotoxicity endpoints. The comprehensive comparison of cellular toxicity profiles and mechanisms among the 6 SWCNTs can bridge the knowledge gap on relationship between nanomaterial toxicity mechanisms and physicochemical properties. The high-resolution molecular stress response profile and toxicity level comparisons would advance and contribute to a systematic understanding of CNT toxicity, and is expected to be a screening tool to guide for nanomaterial manufacturing and risk management. In addition, the knowledge on the impact of single CNT property factor as elucidated in this study would facilitate the assessment of synergy of multiple property variables, which warrants future investigation.
